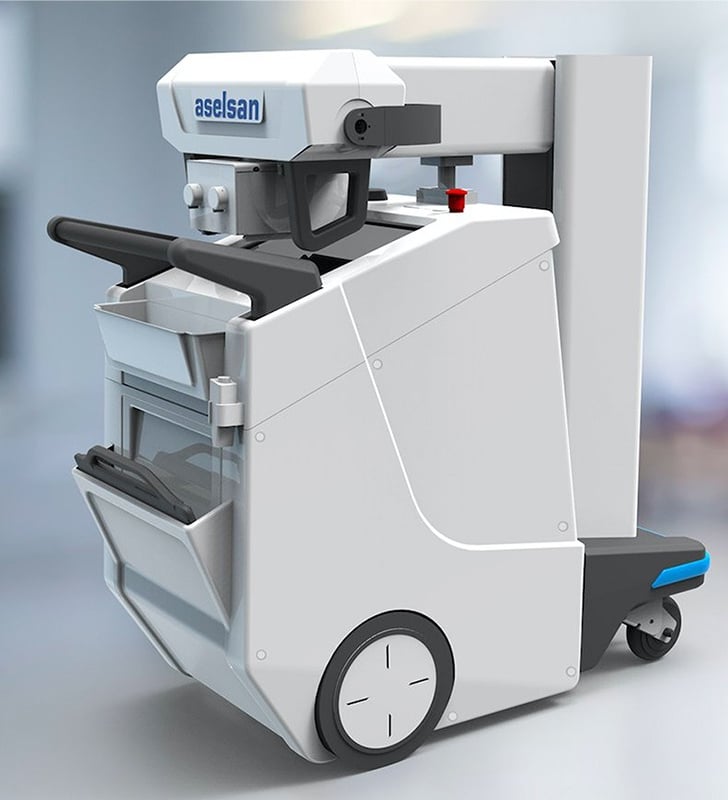

Aselsan ADR M100

Mobile X-Ray

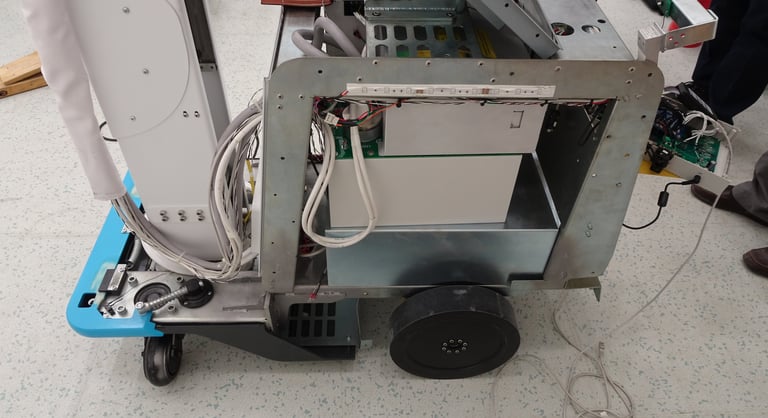

We developed the metal construction, drive system, steering system, active bumper, column parking mechanism and the plastic shell. The detailed mechanical design is conducted considering the service requirements and serial production techniques. The final product comprises 30 plastic parts, 65 sheet metal and machined parts. All plastic parts of the final prototype are serial production ready with draft angles.

Client: Aselsan A.Ş.

Scope: Mechanical design, Prototyping
